I ended up removing two heart pine floorboards where the pop-out sagged away from the house and installing a 6″ wide plank in place to span the gap between house and pop-out. It’s impossible to know how it will hold up as the seasons change, but I’m confident that Bonebrake has already done the vast majority of its settling, so I’m optimistic the new board will go the distance (no pun intended). It took some belt sanding and a bit of epoxy, but I managed to get the whole area suitably flat. Of course, the pop-out still noticeably slopes away from the rest of the house, but stuff like that is what owning an old house is all about.
I pulled all the nails out of the salvaged oak floor boards and lightly sanded the backs to remove splinters.
Then it was just a matter of installing the oak flooring back in. Since this is S4S—no tongue and groove to worry about—it’s deceptively easy. Just squeeze everything together as tightly as possible, ensure it’s sitting in a straight line, and nail it down. Every board is nailed down twice every six inches. I went through an unconscionable amount of 18-gauge brads with my pneumatic nailer. I can’t imagine how time-consuming it was to set each nail by hand when these boards were first installed over a hundred years ago.
I’m proud to say I re-used virtually everything I salvaged. I filled in with new quarter-sawn white oak S4S boards I ordered from Hiland. As you might expect, it was much easier to work with the long, straight, and consistently sized modern boards—and tempting to give up re-using the old ones. I did end up using new boards for the main long area of platform floor, but worked in the remaining salvaged boards on either side. Keeping the old boards and new boards segregated like this should make it easier to color them to match, should that end up being necessary once everything is sanded.
I’ll have to put a couple more boards in once Jordan finishes up his framing, but besides that, all that’s left now is to sand everything down smooth and finish it. I’ll wait for that until the very end of this project.
Our primary staircase consists of a few steps up to a platform or landing, part of which is cantilevered out over the main building’s foundation. We usually call this the “pop-out”, though I’m sure there are many other architectural terms for it. The pop-out provides the necessary space to turn 180 degrees before ascending the longer run of steps. In other words, the a roughly 3′ × 4′ section of this platform is inside the foyer, and another 9′ × 3′ section, which includes a small coat closet, is in the cantilevered pop-out.
The house has been through so many transformations over the years, and the floor tells the story. The pop-out floor, which has settled significantly and now slopes away from the rest of the room, is the beautiful face-nailed quarter sawn white oak in many of the other principal rooms at Bonebrake (inexplicably 1-49/64″ wide and installed circa 1910). Beneath this face-nailed strip is what was both the house’s original subfloor and finished floor: 3/4″ tongue-and-groove heart pine, installed directly across the floor joists.

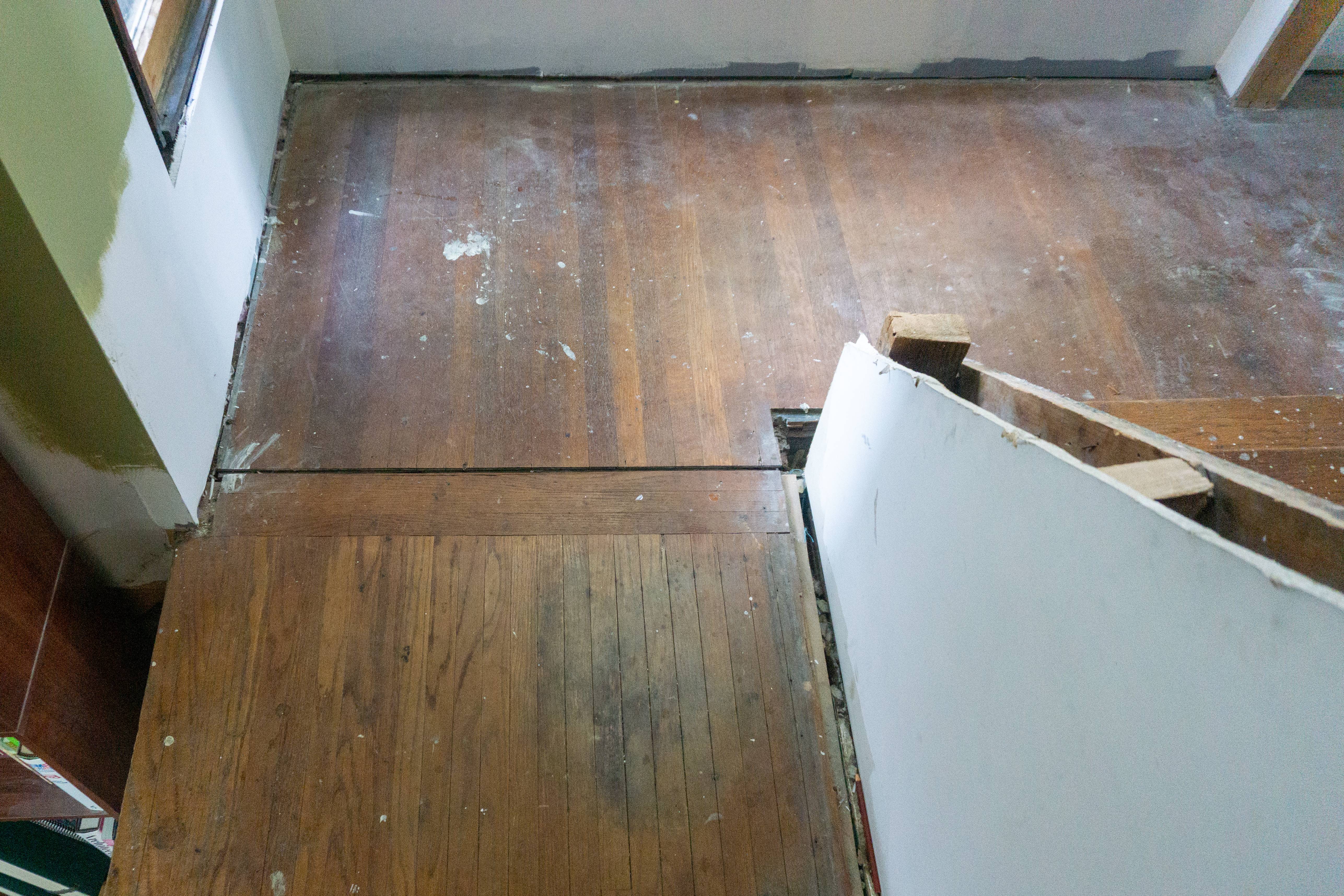

The 3′ × 4′ part of the platform, inside the foyer, framed in the 1980s, had a plywood subfloor and more recent 1-1/2″-wide plain-sawn tongue-and-groove oak strip, certainly also dating to the 1980s but showing its age much more than the century-old q/s flooring adjacent to it. Although this was all supposed to be one platform and one consistent floor surface, structural and historical differences between these sections caused it to look really junky and odd. Unmatched flooring materials required a few strips of perpendicular boards to “disguise” the seam. Here’s what it looked like before I tore out the 1980s strip a few weeks ago:
It’s been my goal to unify the flooring if possible, so yesterday I started carefully removing the exposed q/s boards. Believe it or not, it worked better than I expected! Over 90% of what I removed should be salvageable and reusable.

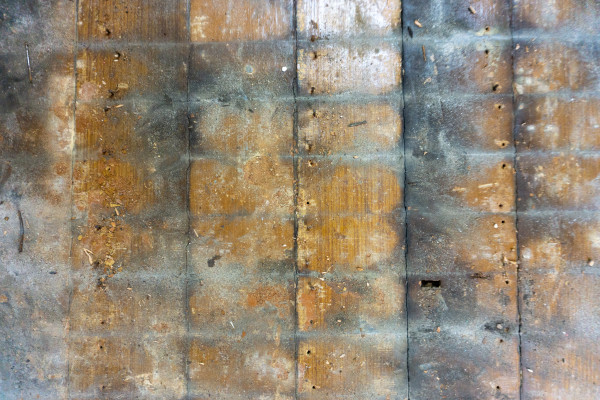

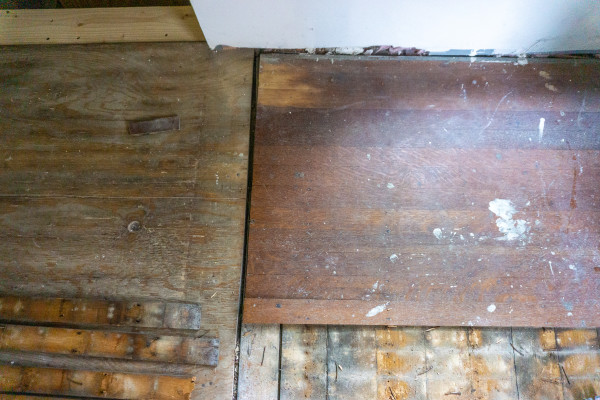

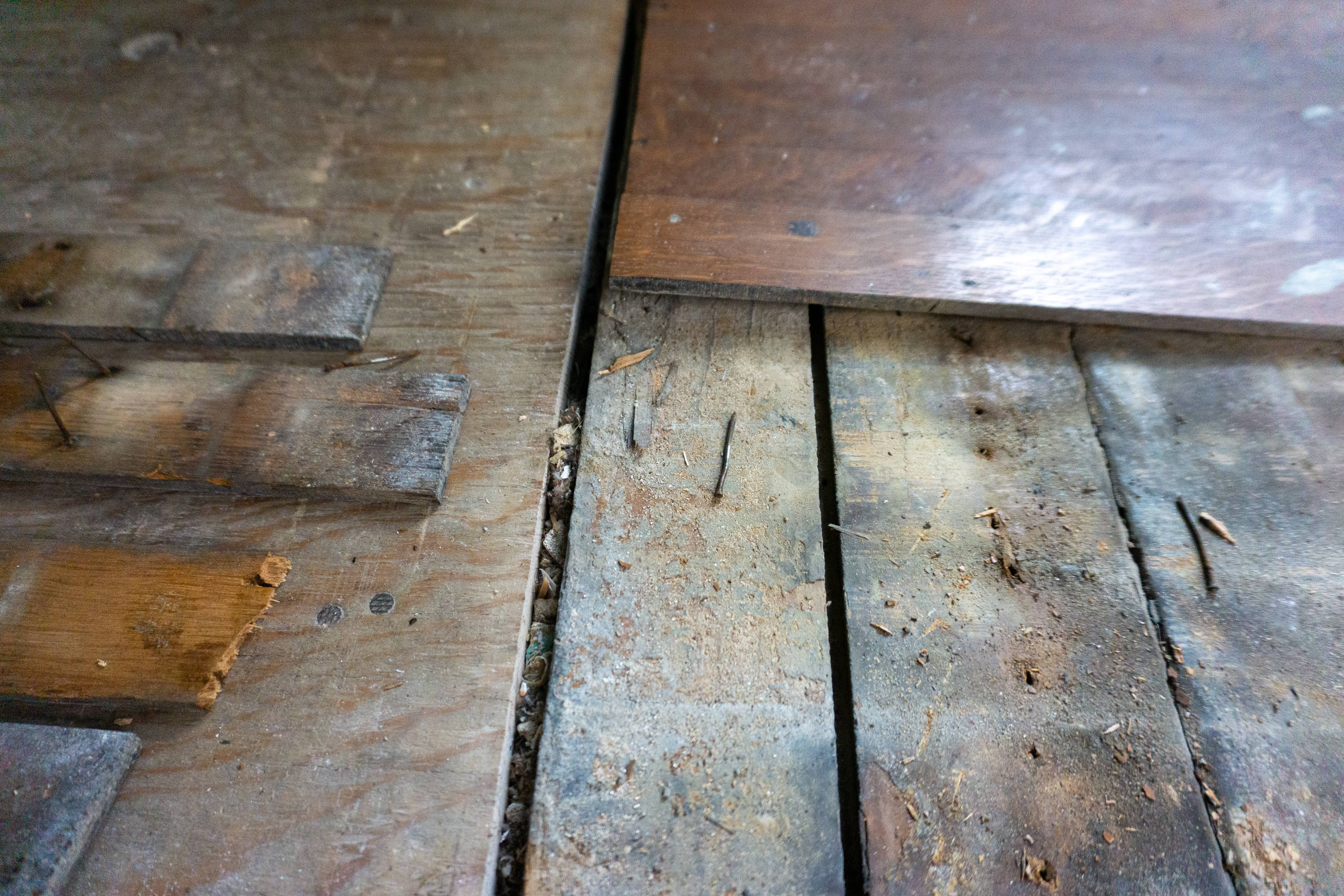

As expected, I found heart pine subfloor underneath. The two boards right at the edge—where the pop-out meets the house’s foundation—were loose and gappy due to 140 years of settling, but otherwise they looked beautiful. Fascinatingly, they appear to have been “grained” (the common Victorian practice of painting inexpensive wood to look like something different and usually costlier). If I’m right that the q/s boards went in around 1910, that means these pine floors were only lived on for about 20 years—30 at most. This graining is nicely done, but it was not seen by human eyes for very long. (The “wood grain” visible in this picture is not the heart pine; it’s the painted graining that is flaking off. Even weirder, below the delicate graining is an independent layer of solid brownish-orange paint. So this floor was almost certainly painted twice in its short stint as a finished surface.) Today people pay exorbitant amounts of money for salvaged heart pine flooring… the material that’s functioning as a subfloor throughout this home, considered cheap and rough when it was installed.
Next I need to unify the gappy seam and re-lay boards. More on that later.
